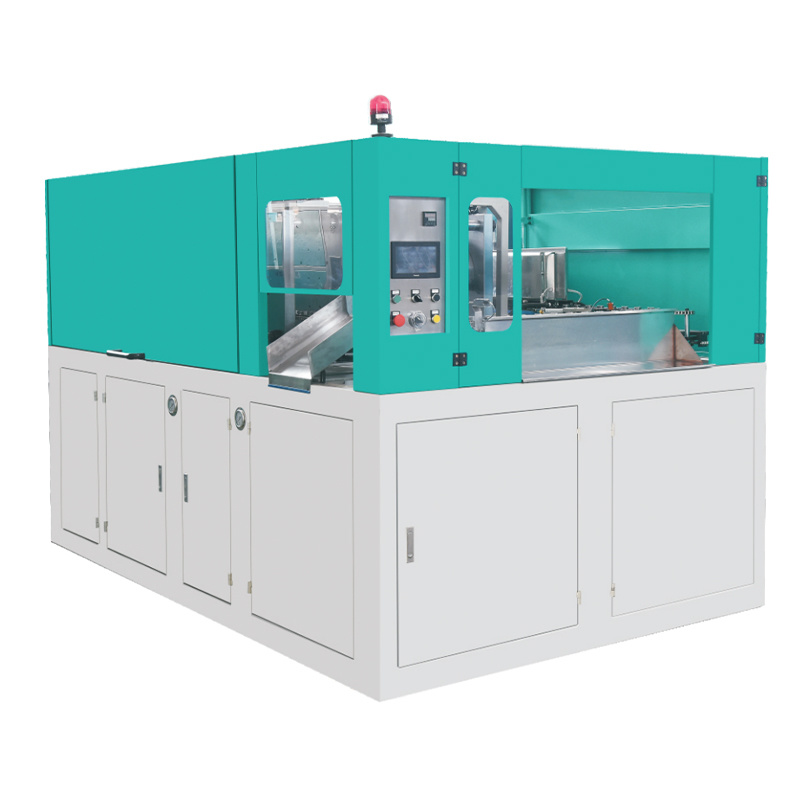

 Automatic bottle-blowing machine |
RYSB-D blow molding machine is an automatic two-stages stretch blow molding equipment. It is suitable for various kinds of plastic bottle in all shapes,Which be made of different materials such as PET. It can be widely used to produce the carbonated bottle,oil bottle,cosmetics,wide-mouth bottle and hot fill bottle etc.
¡ñ Non-iol eccentric air bag mold clamping technology is adopted to produce more powerful clamping force,and ensure better quality of bottles,while the crank sustains less force during movement to keep a Polonged life.
¡ñ By adopting fly-out sealing patented technology,sealing of bottles is easier,especially for wide mouth bottles.
¡ñ The employment of Panasonic PLC touch screen ensures easier operation and higher stability. |

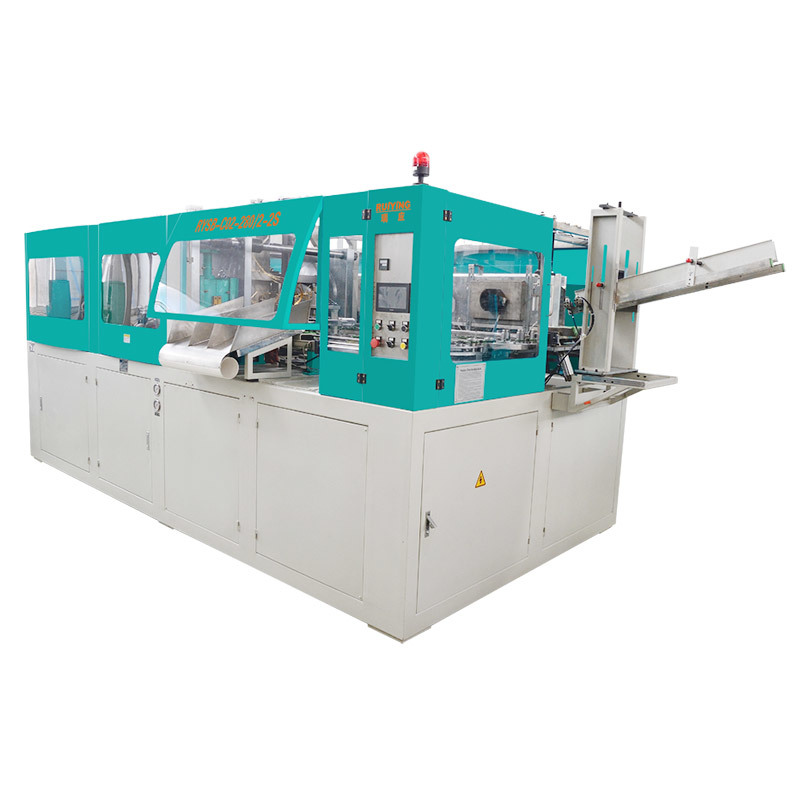

RYSB-D02-110/2 full-automatic stretch blow molding machine(one with two) |
 |
|
Suited equiment |
 |
|

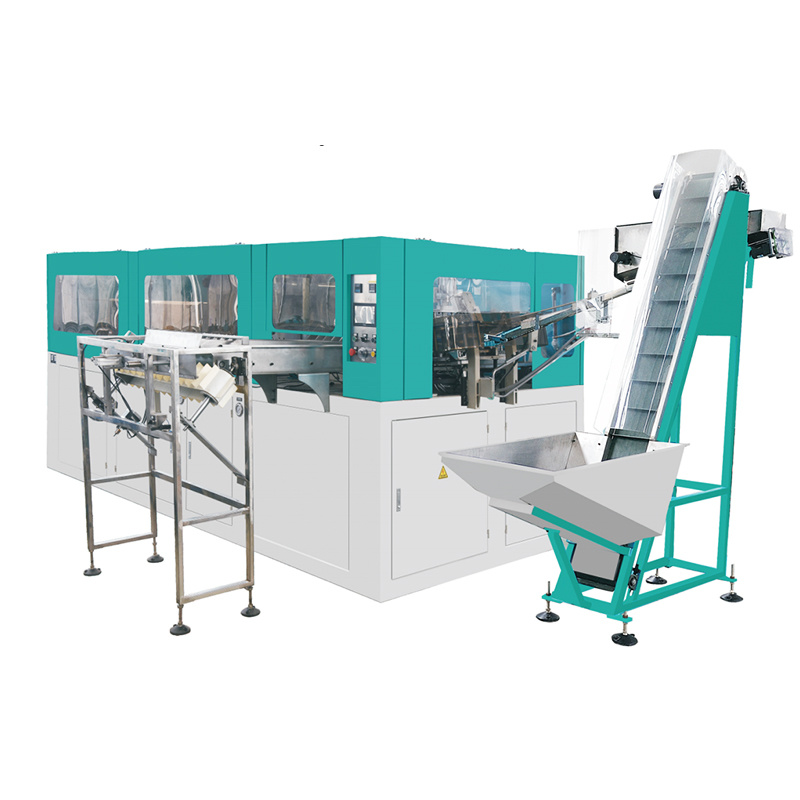

RYSB-D02-60/4 Automatic bottle-blowing machine(1 to 4)
RYSB-D02-60/4 Automatic bottle-blowing machine(1 to 4) vedio |
¡¤Non-iol eccentric air bag mold clamping technology is adopted to produce more powerful clamping force,and ensure better quality of bottles,while the crank sustains less force during movement to keep a Polonged life.
¡¤By adopting fly-out sealing patented technology,sealing of bottles is easier,especially for wide mouth bottles.
¡¤The employment of Panasonic PLC touch screen ensures easier operation and higher stability. |
|
| RYSB-D Series full-automatic stretch blow molding technical parameter |
|
UNIT |
RYSB-IB |
RYSB-D01 |
RYSB-D02 |
RYSB-D03 |
RYSB-D04 |
| 280/1 |
240¡Á2 |
280¡Á2 |
100/2 |
140¡Á2 |
180¡Á1 |
60/4 |
180¡Á2 |
60/6 |
90/4 |
100/4 |
60/8 |
100/6 |
| Number of cavities |
|
1 |
2 |
2 |
2 |
2 |
1 |
4 |
2 |
8 |
4 |
4 |
8 |
6 |
| Max Diameter of The Product |
MM |
280 |
240 |
280 |
100 |
140 |
180 |
60 |
180 |
60 |
90 |
100 |
60 |
100 |
| Max.product height |
MM |
450 |
450 |
450 |
350 |
350 |
350 |
250 |
350 |
250 |
320 |
350 |
250 |
350 |
| Max Out Diameter of The Product |
MM |
120 |
120 |
120 |
42 |
120 |
120 |
42 |
120 |
42 |
42 |
42 |
42 |
42 |
| Max.container volume |
L |
1.5 |
10 |
15 |
2 |
3 |
6 |
0.6 |
6 |
0.6 |
1.5 |
2 |
0.6 |
2 |
| Theoretical output |
Bottle/nr |
400 |
1000 |
800 |
2000 |
1600 |
500 |
4000 |
1000 |
6000 |
3600 |
3600 |
8000 |
5400 |
| Max.blowing pressure |
Kg/cm2 |
30 |
| the air flow when blowing the maximum capacity |
m3/mm |
3 |
5 |
6 |
2 |
2.4 |
2 |
1.8 |
3 |
2.4 |
3 |
4 |
3 |
6 |
| Max.heating power |
KW |
24 |
24 |
24 |
20 |
24 |
24 |
24 |
36 |
36 |
36 |
36 |
40 |
48 |
| Size(L*W*H) |
M |
3.2¡Á2¡Á2 |
2.4¡Á1.65¡Á2 |
3.5¡Á1.65¡Á2 |
4.5¡Á1.65¡Á2 |
4.8¡Á2¡Á2 |
* Output depends upon bottle shape and preform quality.
* Specifications are suject to change without notice.
|
