PP & PP Jar Series automatic stretch blow molding machine
Categories:
RYSB-PP Series
WhatsApp/tel:
WeChat:
Details
FEATURES
The first fly out seal Patent technology，Make it easier for sealing especially jar sealing.
Airbag locking mold,no rolling out.
Easier operation and higher stability.
Air recovery system(air consumption will be saved 10-25%).
Choose servo control to ensure high-speed operation and precise locating.

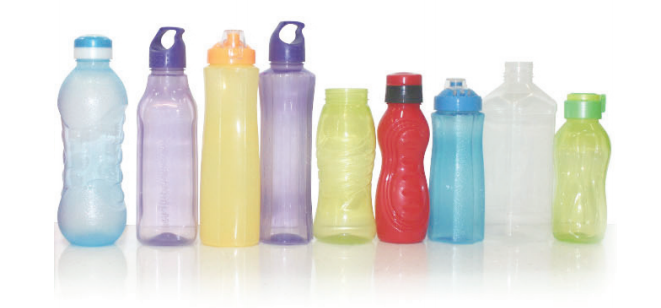

PP series of bottle blowing machine is a two steps automatic stretch bottle blowing device. Mainly used in the producing of PET hot filling bottles.Widely used drinks bottles, milk bottles, curing food bottles, medicine bottles,jar,hot filling bottles etc.
| UNIT | RYSB-C04PP | RYSB-C06PP | RYSB-C01PP | RYSB-C02PP | RYSB-D03PP | RYSB-D04PP | ||||||||||||
| 90/4 | 118/4 | 90/6 | 118/6 | 230/1-6L | 230/1-12L | 230/2-6L | 230/2-12L | 90/2 | 118/2 | 180/1 | 68/4 | 90/4 | 118/4 | 140/3 | 170/3 | 200/2 | ||
| Number of cavity | Cavities | 4 | 4 | 6 | 6 | 1 | 1 | 2 | 2 | 2 | 2 | 1 | 4 | 4 | 4 | 3 | 3 | 2 |
| Heating preform spacing | mm | 50.8 | 50.8 | 50.8 | 50.8 | 76.2 | 76.2 | 76.2 | 76.2 | 50.8 | 50.8 | 76.2 | / | / | / | / | / | / |
| Clamping stroke | mm | 110 | 140 | 110 | 140 | 260 | 260 | 260 | 260 | 1D | 140 | 210 | 100 | 110 | 140 | 160 | 200 | 230 |
| Cavity spacing | mm | 101.6 | 127 | 101.6 | 127 | 254 | 254 | 254 | 254 | 101.6 | 127 | 203.2 | 76.2 | 101.6 | 127 | 152.4 | 190.5 | 228.6 |
| Carriage unit | pcs | 146 | 144 | 204 | 208 | 50 | 50 | 85 | 85 | 93 | 75 | 46 | 125 | 120 | 96 | 80 | 64 | 60 |
| Max. container volume | ltr | 1.5 | 2.5 | 1.5 | 2.5 | 6 | 12 | 6 | 12 | 1.5 | 2.5 | 6 | 0.6 | 1.5 | 2.5 | 3 | 5 | 6 |
| Max, neck diameter | mm | 38 | 38 | 38 | 38 | 56/120(M) | 56/120(M) | 56/120(M) | 56/120(M) | 38/75(M) | 38/90(M) | 56/120(M) | 38 | 75 | 90 | 120 | 120 | 120 |
| Max. container diameter | mm | 90 | 118 | 90 | 118 | 230 | 230 | 230 | 230 | 90 | 118 | 180 | 68 | 90 | 18 | 140 | 170 | 200 |
| Max, container height | mm | 320 | 350 | 320 | 350 | 350 | 420 | 350 | 420 | 320 | 350 | 350 | 260 | 320 | 350 | 350 | 350 | 350 |
| THEORETICAL OUTPUT | bph | 2000 | 1800 | 3000 | 2800 | 300 | 260 | 600 | 500 | 1000 | 1000 | 300 | 2000 | 2000 | 1800 | 1200 | 1000 | 600 |
| Max. heating power | kw | 27 | 36 | 36 | 48 | 36 | 36 | 36 | 36 | 27 | 36 | 36 | 40 | 40 | 40 | 54 | 54 | 54 |
| Operating pressure | kg/cm² | 7 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Blowing pressure | kg/cm² | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Max. capacity of air flow | m³/min | 2 | 2.5 | 3 | 3.5 | 1.5 | 2 | 1.5 | 2 | 1 | 1.5 | 5 | 1.2 | 2 | 2 | 3 | 3 | 2 |
| Machine size | m | 4.38x1.8x2 | 5.55x1.8x2 | 2.2x1.7x2 | 3x2.1x2 | 3x2.1x2 | 4.3x1.8x2 | 5.6x1.95x2 | ||||||||||
| Machine weight | t | 3 | 3.2 | 4.5 | 4.8 | 1.5 | 2.2 | 2.2 | 3 | 3.3 | 3.3 | 4.5 | ||||||
We have our own equipment and strong production capacity
high-quality channels, ensuring the best prices.
FESTO Solenoid Valves
Delta Servo Drive
Components
Panasonic Photoelectric Sensor
Panasonic PLC Expansion
Servo
Omron Intermediate Relay
Huichuan Servo Drive
Huichuan servo drive
THK Linear Guide Slide
