RYSB-DM Series hand feeding preform automatic bottle blowing machine
Categories:
RYSB-DM Series

WhatsApp/tel:
Details

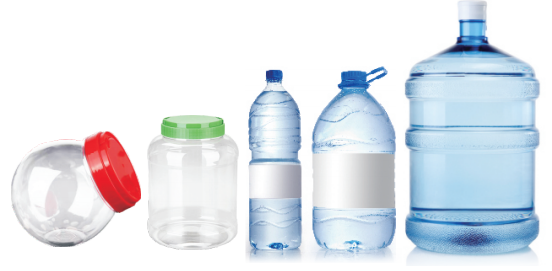

RYSB-DM series of bottle blowing machine is a two steps hand feeding preform automatic stretch bottle blowing device.Mainly used in the producing of PET bottles.Widely used drinks bottles, mineral water bottles,oil bottles,medicine bottles,cosmetic bottles,jar,and hot filling bottles etc.
FEATURES
Placing preform by manual for heating and bottle forming.
Air recovery system (air consumption will be saved 20-25%).
Simplified operation, stable operation.
Save investment.
Upgrade production capacity.
Minimum space.
UNIT | RYSB-DM01 | ||||||||
68/3 | 68/4 | 100/2 | 140/2 | 180/1 | 230/1 | 280/1 | |||
MOLDING | Number of cavity | Cavities | 3 | 4 | 2 | 2 | 1 | 1 | 1 |
Clamping stroke | mm | 100 | 100 | 120 | 160 | 210 | 260 | 310 | |
Cavily spacing | mm | 762 | 76.2 | 114.3 | 152.4 | 2032 | 266.7 | 304.8 | |
Carriage unit | pcs | 88 | 88 | 59 | 45 | 34 | 26 | 26 | |
CONTAINER | Max container volume | Itr | 6 | 0.6 | 2 | 3 | 6 | 12 | 20 |
Max . neck diameter | mm | 42 | 42 | 42 | 120 | 120-150 | 120-150 | 120-150 | |
Max container diameter | mm | 68 | 68 | 100 | 140 | 180 | 230 | 280 | |
Max. container height | mm | 260 | 260 | 350 | 350 | 350 | 420 | 500 | |
LTHEORETICAOUTPUT | bph | 2700 | 3600 | 1800 | 1600 | 600 | 500 | 200-300 | |
ELECTRICAL | Max. heating power | kw | 36 | 36 | 36 | 36 | 36 | 36 | 45 |
SYSTEM | |||||||||
AIR SYSTEM | Operating pressure | kg/cm² | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Blowing pressure | kg/ cm² | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
Max. capacity of air flow | m³/ min | 1.6 | 1.8 | 2 | 24 | 1.5 | 2.5 | 3 | |
MADHINE | Machine size | m | 3×1.8×2 | 3×2×2 | 3.25×22×2 | ||||
Machine weight | t | 1.5 | 1.8 | 2 | 25 |
REMARK
1.The actual output depends on the preformquality and bottle shape.
2.Specifications are subject to change without notice.
3.Output depends upon bottle shape and preform quality.
We have our own equipment and strong production capacity
high-quality channels, ensuring the best prices.

FESTO Solenoid Valves

Delta Servo Drive

Components

Panasonic Photoelectric Sensor

Panasonic PLC Expansion

Servo

Omron Intermediate Relay

Huichuan Servo Drive

Huichuan servo drive

THK Linear Guide Slide
