RRYSB-D Series automatic stretch blow molding machine
Precise control: Equipped with advanced control system
Categories:
RYSB-D Series
WhatsApp/tel:
WeChat:
Details
RYSB-D series of bottle blowing machine is a two steps automatic stretch bottle blowing device.
APPLICATIONS

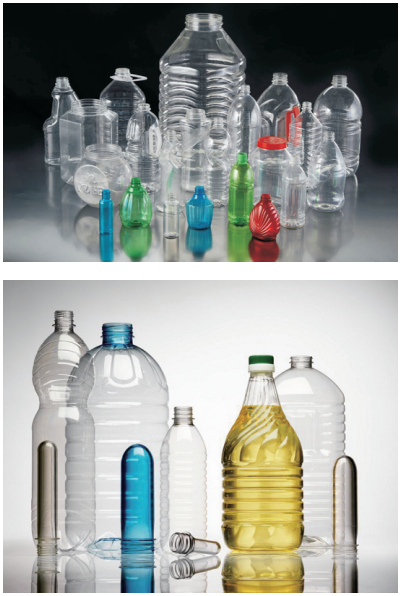

Foods, oil, drink, mineral water, alcoholmedicine, chemical,hot filling,Cosmeticand all kinds of bottles.
FEATURES
Linear construction transports preform for heating and bottle forming.
Airbag locking mold.OUpgrade production capacity.
Upgrade power effciency.
Simplified operation by MMI control panel.
Modular design facilitates maintenance.
Save investment and enhance competition.
Air recovery system(air consumption will be saved 10-25%).
CHOOSE SERVO CONTROL
Output will be improved 20~30% per unit time.
Power consumption will be saved15-25%(Power consumption depends on bottle shape).
Choose servo control to ensure high-speed operation and precise locating.
SERVO-ELECTRIC TECHNOLOGY:High Precision / High Reliability / Energy-saving
High speeds, energy-saving and high reliablityof linear stretch blow moulding machine.
| UNIT | RYSB-D01 | RYSB-D03 | RYSB-D04 | |||||||||||||||
| 68/4 | 100/2 | 140/2 | 200/1 | 230/1 | 68/6 | 90/4 | 100/4 | 118/4 | 140/3 | 200/2 | 68/8 | 90/6 | 100/6 | 140/4 | 200/3 | |||
| MOLDING | Number of cavity | Cavities | 4 | 2 | 2 | 1 | 1 | 6 | 4 | 4 | 4 | 3 | 2 | 8 | 6 | 6 | 4 | 3 |
| Clamping stroke | mm | 100 | 120 | 160 | 230 | 260 | 100 | 10 | 120 | 140 | 160 | 230 | 100 | 110 | 120 | 160 | 230 | |
| Cavily spacing | mm | 76.2 | 114.3 | 152.4 | 228.6 | 266.7 | 76.2 | 101.6 | 114.3 | 127 | 152.4 | 228.6 | 76.2 | 101.6 | 114.3 | 152.4 | 228.6 | |
| Carriage unit | pcs | 88 | 59 | 45 | 30 | 26 | 124 | 93 | 85 | 82 | 63 | 44 | 158 | 119 | 106 | 83 | 56 | |
| CONTAINER | Max container volume | Itr | 0.6 | 2 | 3 | 6 | 12 | 0.6 | 1.5 | 2 | 2.5 | 3.5 | 6 | 0.6 | 1.5 | 2 | 3.5 | 6 |
| Max . neck diameter | mm | 38 | 38 | 56 | 56 | 56 | 38 | 38 | 38 | 38 | 56 | 56 | 38 | 38 | 38 | 56 | 56 | |
| Max container diameter | mm | 68 | 100 | 140 | 200 | 230 | 68 | 90 | 100 | 118 | 140 | 200 | 68 | 90 | 100 | 140 | 200 | |
| Max. container height | mm | 250 | 350 | 350 | 350 | 420 | 250 | 320 | 350 | 350 | 350 | 350 | 250 | 320 | 350 | 350 | 350 | |
| THEORETICAL OUTPUT | bph | 4800 | 2000 | 1600 | 600 | 500 | 8000 | 4000 | 4000 | 3600 | 2400 | 1200 | 10000 | 7200 | 6000 | 3200 | 1800 | |
| ELECTRICAL | Max. heating power | kw | 27/36 | 36 | 36 | 36 | 36 | May-40 | 72 | 72 | 72 | 72 | 72 | 72 | 60 | 60 | 72 | 72 |
| AIR SYSTEM | Operating pressure | kg/cm² | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Blowing pressure | kg/ cm² | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Max. capacity of air flow | m³/ min | 1.8 | 2 | 2.5 | 2 | 2.5 | 2.5 | 3.2 | 4.3 | 5 | 4 | 5 | 3.2 | 4.8 | 6 | 5.2 | 5.8 | |
| MADHINE | Machine size | m | 3x2x2 | 3x2x2 | 4.38x1.8x2 | 4.4X1.8X2 | 4.9X1.8X2 | 4.5X1.8X2 | 4.7X1.8X2 | 5.55X1.95X2 | 6X2X2 | |||||||
| Machine weight | t | 1.8 | 3.8 | 4 | 4.3 | 5 | 5.5 | |||||||||||
REMARK
1.The actual output depends on the preformquality and bottle shape.
2.Specifications are subject to change without notice.
3.Output depends upon bottle shape and preform quality.
We have our own equipment and strong production capacity
high-quality channels, ensuring the best prices.
FESTO Solenoid Valves
Delta Servo Drive
Components
Panasonic Photoelectric Sensor
Panasonic PLC Expansion
Servo
Omron Intermediate Relay
Huichuan Servo Drive
Huichuan servo drive
THK Linear Guide Slide
