RYSB-C Series automatic stretch blow molding machine
Crystallization machine can crystallize the mouth of hot fillingpreform
Categories:
RYSB-C Series
WhatsApp/tel:
WeChat:
Details
FEATURES
The first one stop Seperating ,closure delivery technology, Use only A servo motor control.
High efficient heating device utilizing long and short pitch blocks to transfer preform with mininum space and energy.

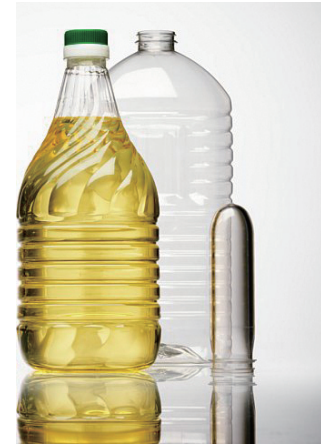

Suitable for post-inseting handle edible oil bottle.
Air recovery system(air consumption will be saved10-25%).
Choose servo control to ensure high-speed operation and precise locating.
| UNIT | RYSB-C01 | RYSB-C03 | RYSB-C04 | RYSB-C06 | ||||||||||||||||
| 140/2 | 230/1-6L | 230/1-12L | 280/1 | 118/4 | 140/4 | 230/2-6L | 230/2-12L | 280/2 | 90/6 | 118/6 | 140/4 | 230/3 | 180/4 | 90/8 | 118/8 | 180/4-54 | 180/4-80 | 230/4 | ||
| Number of cavity | Cavities | 2 | 1 | 1 | 1 | 4 | 4 | 2 | 2 | 2 | 6 | 6 | 4 | 3 | 4 | 8 | 8 | 4 | 4 | 4 |
| Heating preform spacing | mm | 60 | 76.2 | 76.2 | 127 | 60 | 60 | 76.2 | 76.2 | 127 | 60 | 60 | 76.2 | 101.6 | 76.2 | 60 | 60 | 76.2 | 101.6 | 76.2 |
| Clamping stroke | mm | 160 | 260 | 260 | 310 | 140 | 160 | 260 | 260 | 310 | 110 | 140 | 160 | 210 | 210 | 10 | 140 | 210 | 210 | 210 |
| Cavity spacing | mm | 152.4 | 254 | 254 | 304.8 | 127 | 152.4 | 254 | 254 | 304.8 | 101.6 | 127 | 152.4 | 203.2 | 203.2 | 101.6 | 127 | 203.2 | 203.2 | 203.2 |
| Carriage unit | pcs | 76 | 54 | 54 | 49 | 129 | 127 | 82 | 64 | 49 | 156 | 153 | 3B | 127 | 98 | 204 | 208 | 139 | 115 | 139 |
| Max. container volume | 1tr | 3 | 6 | 12 | 20 | 2.5 | 3.5 | 6 | 12 | 20 | 1.5 | 2.5 | 3.5 | 12 | 6 | 1.5 | 2.5 | 6 | 6 | 6 |
| Max. neck diameter | mm | 38 | 56 | 56 | 70 | 38 | 56 | 56 | 56 | 70 | 38 | 38 | 56 | 56 | 56 | 38 | 38 | 56 | 80 | 56 |
| Max. container diameter | mm | 140 | 230 | 230 | 280 | 18 | 140 | 230 | 230 | 280 | 90 | 1B | 140 | 230 | 180 | 90 | 18 | 180 | 180 | 180 |
| Max, container height | mm | 350 | 350 | 420 | 500 | 350 | 350 | 350 | 420 | 500 | 320 | 350 | 350 | 420 | 350 | 320 | 350 | 350 | 350 | 350 |
| THEORETICAL OUTPUT | bph | 2000 | 700 | 600 | 300 | 4000 | 4000 | 1200 | 1000 | 600 | 7000 | 6000 | 3200 | 1800 | 2400 | 8800 | 8000 | 2800 | 2800 | 2400 |
| Max. heating power | kw | 24 | 24 | 24 | 28 | 56 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 72 | 72 | 54 | 54 | 56 |
| Operating pressure | kg/cm² | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Blowing pressure | kg/cm² | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Max. capacity of air flow | m³/min | 2.2 | 2.2 | 3.7 | 3 | 5 | 7 | 4 | 6 | 6 | 6 | 7.5 | 6.5 | 9 | 6.5 | 7.2 | 7.5 | 7.2 | 7.2 | 9 |
| Machine size | m | 2.2x1.7x2 | 4.1x1.8x2 | 3.25x2.2x2 | 3.25x2.2x2 | 4.85x1.8x2 | 5.1x2x2 | 6.5x2x2 | 6.1x2x2 | |||||||||||
| Machine weight | t | 2.1 | 3 | 3.2 | 4.5 | 5.5 | ||||||||||||||
We have our own equipment and strong production capacity
high-quality channels, ensuring the best prices.
FESTO Solenoid Valves
Delta Servo Drive
Components
Panasonic Photoelectric Sensor
Panasonic PLC Expansion
Servo
Omron Intermediate Relay
Huichuan Servo Drive
Huichuan servo drive
THK Linear Guide Slide
